| SPECIFICATION | 36B3S |
|---|---|
| CUT-OFF DIA. MAX. (mm) | 36 |
| CUT-OFF LENGTH MAX. (mm) | 18~120 |
| KICK-OUT LENGTH MAX. (mm) | 90 (60) |
| P.K.O. LENGTH MAX. (mm) | 36 |
| CUT-OFF QUILL (DxL) (mm) | 115x135 |
| MAIN DIE HOLE (DxL) (mm) | 160x220 |
| DIES PITCH (mm) | 174 |
| PUNCH HOLE (DxL) (mm) | 102x275 |
| RAM STROKE (mm) | 280 |
| FORGING POWER (ton) | 480 |
| PRODUCT SIZE (mm) | 36x80 |
| OPEN UPSET DIA. (mm) | 38 |
| MAX. OUTPUT (pcs/minute) | 85 |
| MAIN MOTOR (hp) | 125 |
| APPROX. WT. (ton) | 85 |
Cold Forming Equipment

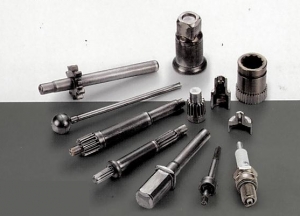

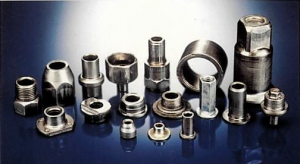

JPF Series Parts Former
- Includes JNP, JBP parts formers
- Available in 3D3B to 7D7B configurations
- 7mm to 45mm Cutoff Diameters
- 3.5mm to 450mm Cutoff Lengths
- Motorized wire stop adjustment helps with quick and precise cutoff length (optional)
- Modular universal transfer finger system (optional)
- Quick tool change (QTC) system available for die and punches
- APT lift and turn transfer system allows operator quick and easy access to transfer setup
- Horizontal wire stand with hydraulic straightener (std for large machines)
- PKO in all stations
- Ramslide with over-arm design which allows for stability and long-lasting reliability
- Aluminum alloy bushing for main crank
Motorized / digital stopper adjustment helps operators to get a quick and precise cut-off length (optional)
Motorized / digital K.O. length adjustment saves operators a lot of tooling change-over time
Fast and positive operation by air clutch and brake control
Motorized / digital feed length adjustment with length indication screen on the operator control panel (optional)
New mechanism allows for P.K.O. adjustment
Digital gauge for P.K.O. adjustment
Extra set of die and punch blocks allows operators to setup another job while machine is running (optional)
New technical transfer system, transfer housing lift and turn system, allows operators to setup the transfer easily (optional)
The horizontal wire stand (pay off reel) with a hydraulic pointed straightener is easily and quickly operated for heavy wire rods
Digital gauge for straightener rollers
Universal transfer finger system. Depending on the forged parts, three types of transfer fingers can be installed at any station
-
-
SPECIFICATION 8B5S 10B5S 14B5S 17B5S 19B5S 24B5S 28B5S CUT-OFF DIA. MAX. (mm) 8 10 14 17 21 26 28 CUT-OFF LENGTH MAX. (mm) 4~20 5~25 7~30 8.5~35 10.5~40 13~50 14~55 KICK-OUT LENGTH MAX. (mm) 30 (15) 38 (20) 42 (25) 50 (30) 58 (35) 66 (40) 75 (45) P.K.O. LENGTH MAX. (mm) 8 10 13 16 19 25 29 CUT-OFF QUILL (DxL) (mm) 28x35 38x45 45x60 55x68 65x75 85x90 94x100 MAIN DIE HOLE (DxL) (mm) 37x75 45x90 60x100 75x125 100x140 115x160 125x175 DIES PITCH (mm) 48 57 72 87 111 129 138 PUNCH HOLE (DxL) (mm) 30x84 37x92 42x120 55x139 70x155.5 80x185 84x221 RAM STROKE (mm) 90 100 120 140 165 200 240 FORGING POWER (ton) 30 45 90 115 165 250 330 PRODUCT SIZE (mm) 8x20 10x30 14x35 17x45 20x50 24x55 28x65 OPEN UPSET DIA. (mm) * 16 24 19 28 30 32 MAX. OUTPUT (pcs/minute) 320 290 240 190 170 140 120 MAIN MOTOR (hp) 10 15 30 30 40 50 75 APPROX. WT. (ton) 7 9.5 14.5 19.5 26 44 58 SPECIFICATION 32B5S 36B5S 38B5S 41B5SS 41B5S 45B5S CUT-OFF DIA. MAX. (mm) 33 36 38 41 41 45 CUT-OFF LENGTH MAX. (mm) 16.5~65 18~70 19~80 20.5~80 20.5~80 22.5~100 KICK-OUT LENGTH MAX. (mm) 85 (50) 90 (60) 100 (70) 100 (60) 115 (70) 120 (80) P.K.O. LENGTH MAX. (mm) 32 36 38 35 40 42 CUT-OFF QUILL (DxL) (mm) 105x120 115x135 115x135 132x155 132x155 138x165 MAIN DIE HOLE (DxL) (mm) 150x190 160x220 166x260 180x240 180x280 195x280 DIES PITCH (mm) 165 174 180 195 195 210 PUNCH HOLE (DxL) (mm) 102x268 102x275 108x289 120x289 120x289 135x289 RAM STROKE (mm) 260 280 300 270 320 320 FORGING POWER (ton) 460 560 650 670 750 830 PRODUCT SIZE (mm) 33x70 36x80 40x90 40x80 44x100 1 & 1/4 (M30) OPEN UPSET DIA. (mm) 38 51 * 52 52 62 MAX. OUTPUT (pcs/minute) 90 80 75 65 60 60 MAIN MOTOR (hp) 100 150 175 175 200 250 APPROX. WT. (ton) 77 99 114 135 140 155 -
SPECIFICATION 8B6S 10B6S 14B6S 17B6S 19B6S 24B6S 28B6S CUT-OFF DIA. MAX. (mm) 8 10 14 17 21 26 28 CUT-OFF LENGTH MAX. (mm) 4~20 5~25 7~30 8.5~35 10.5~40 13~50 14~55 KICK-OUT LENGTH MAX. (mm) 30 (15) 38 (20) 42 (25) 50 (30) 58 (35) 66 (40) 75 (45) P.K.O. LENGTH MAX. (mm) 8 10 13 16 19 25 29 CUT-OFF QUILL (DxL) (mm) 28x35 38x45 45x60 55x68 65x75 85x90 94x100 MAIN DIE HOLE (DxL) (mm) 37x75 45x90 60x100 75x125 100x140 115x160 125x175 DIES PITCH (mm) 48 57 72 87 111 129 138 PUNCH HOLE (DxL) (mm) 30x84 37x92 42x120 55x139 70x155.5 80x185 84x221 RAM STROKE (mm) 90 100 120 140 165 200 240 FORGING POWER (ton) 35 50 105 130 175 280 360 PRODUCT SIZE (mm) 8x20 10x30 14x35 17x45 20x50 24x55 28x65 OPEN UPSET DIA. (mm) * 16 24 19 28 30 32 MAX. OUTPUT (pcs/minute) 300 275 225 180 160 130 110 MAIN MOTOR (hp) 15 20 30 40 50 75 100 APPROX. WT. (ton) 7.8 10.5 17 22.5 29 48 64 SPECIFICATION 32B6S 36B6S 38B6S 41B6SS 41B6S 45B6S CUT-OFF DIA. MAX. (mm) 33 36 38 41 41 45 CUT-OFF LENGTH MAX. (mm) 16.5~65 18~70 19~80 20.5~80 20.5~80 22.5~100 KICK-OUT LENGTH MAX. (mm) 85 (50) 90 (60) 100 (70) 100 (60) 115 (70) 120 (80) P.K.O. LENGTH MAX. (mm) 32 36 38 35 40 42 CUT-OFF QUILL (DxL) (mm) 105x120 115x135 115x135 132x155 132x155 138x165 MAIN DIE HOLE (DxL) (mm) 150x190 160x220 166x260 180x240 180x280 195x280 DIES PITCH (mm) 165 174 180 195 195 210 PUNCH HOLE (DxL) (mm) 102x268 102x275 108x289 120x289 120x289 135x289 RAM STROKE (mm) 260 280 300 270 320 320 FORGING POWER (ton) 500 560 700 720 800 900 PRODUCT SIZE (mm) 33x70 36x80 40x90 40x80 44x100 1 & 1/4 (M30) OPEN UPSET DIA. (mm) 38 51 * 52 52 62 MAX. OUTPUT (pcs/minute) 80 80 70 60 60 55 MAIN MOTOR (hp) 125 150 200 200 200 300 APPROX. WT. (ton) 85 99 124 146 153 172 -
SPECIFICATION 17B7S CUT-OFF DIA. MAX. (mm) 17 CUT-OFF LENGTH MAX. (mm) 8.5~35 KICK-OUT LENGTH MAX. (mm) 50 (30) P.K.O. LENGTH MAX. (mm) 16 CUT-OFF QUILL (DxL) (mm) 55x68 MAIN DIE HOLE (DxL) (mm) 75x125 DIES PITCH (mm) 87 PUNCH HOLE (DxL) (mm) 55x139 RAM STROKE (mm) 140 FORGING POWER (ton) 160 PRODUCT SIZE (mm) 17x45 OPEN UPSET DIA. (mm) 19 MAX. OUTPUT (pcs/minute) 170 MAIN MOTOR (hp) 40 APPROX. WT. (ton) 26 -
SPECIFICATION 7B5S 10B5S 13B5S 19B5S 24B5S 30B5S CUT-OFF DIA. MAX. (mm) 7 10 16 22 26 30 CUT-OFF LENGTH MAX. (mm) 3.5~40 5~45 8~60 11~70 13~80 15~100 KICK-OUT LENGTH MAX. (mm) 40 (18) 45 (20) 70 (40) 100 (50) 110 (60) 125 (80) P.K.O. LENGTH MAX. (mm) 10 10 16 20 25 32 CUT-OFF QUILL (DxL) (mm) 24x30 28x46 50x60 70x75 85x90 94x100 MAIN DIE HOLE (DxL) (mm) 38x80 50x85 70x110 90x140 100x160 125x210 DIES PITCH (mm) 48 60 87 111 126 138 PUNCH HOLE (DxL) (mm) 32x70 40x85 50x93 65x130 75x157 90x250 RAM STROKE (mm) 100 100 140 176 200 250 FORGING POWER (ton) 26 55 110 185 270 380 OPEN UPSET DIA. (mm) 14 JS15 IS20 JS22 IS26 27 29 32 MAX. OUTPUT (pcs/minute) 255 230 190 160 120 100 MAIN MOTOR (hp) 10 15 30 50 100 125 APPROX. WT. (ton) 7.3 11 20 29 47 75 SPECIFICATION 36B5S 41B5S 45B5S CUT-OFF DIA. MAX. (mm) 34 41 45 CUT-OFF LENGTH MAX. (mm) 17~40 20.5~160 22.5~180 KICK-OUT LENGTH MAX. (mm) 150 (90) 160 (100) 180 (100) P.K.O. LENGTH MAX. (mm) 36 38 40 CUT-OFF QUILL (DxL) (mm) 110x155 132x155 138x165 MAIN DIE HOLE (DxL) (mm) 155x280 180x300 195x265 DIES PITCH (mm) 174 195 210 PUNCH HOLE (DxL) (mm) 110x222 120x250 135x280 RAM STROKE (mm) 280 300 320 FORGING POWER (ton) 560 750 830 OPEN UPSET DIA. (mm) 51 52 62 MAX. OUTPUT (pcs/minute) 80 60 60 MAIN MOTOR (hp) 150 200 250 APPROX. WT. (ton) 108 152 170 -
SPECIFICATION 7B6S 10B6S 13B6S 19B6S 24B6S 30B6S CUT-OFF DIA. MAX. (mm) 7 10 16 22 26 30 CUT-OFF LENGTH MAX. (mm) 3.5~40 5~45 8~60 11~70 13~80 15~100 KICK-OUT LENGTH MAX. (mm) 40 (18) 45 (20) 70( 40) 100 (50) 110 (60) 125 (80) P.K.O. LENGTH MAX. (mm) 10 10 16 20 25 32 CUT-OFF QUILL (DxL) (mm) 24x30 28x46 50x60 70x75 85x90 94x100 MAIN DIE HOLE (DxL) (mm) 38x80 50x85 70x110 90x140 100x160 120x210 DIES PITCH (mm) 48 60 87 111 126 138 PUNCH HOLE (DxL) (mm) 32x70 40x85 50x93 65x130 75x157 90x250 RAM STROKE (mm) 100 100 140 176 200 250 FORGING POWER (ton) 30 65 135 220 300 420 OPEN UPSET DIA. (mm) 14 JS15 IS20 JS22 IS26 27 29 32 MAX. OUTPUT (pcs/minute) 240 220 170 150 115 95 MAIN MOTOR (hp) 10 20 40 60 100 125 APPROX. WT. (ton) 8.5 12.6 23 32 54 83 SPECIFICATION 36B6S 41B6S 45B6S CUT-OFF DIA. MAX. (mm) 34 41 45 CUT-OFF LENGTH MAX. (mm) 17~140 20.5~160 22.5~180 KICK-OUT LENGTH MAX. (mm) 150 (90) 160 (100) 180 (100) P.K.O. LENGTH MAX. (mm) 36 38 40 CUT-OFF QUILL (DxL) (mm) 110x155 132x155 138x165 MAIN DIE HOLE (DxL) (mm) 155x280 180x300 195x265 DIES PITCH (mm) 174 195 210 PUNCH HOLE (DxL) (mm) 110x222 120x250 135x280 RAM STROKE (mm) 280 300 320 FORGING POWER (ton) 620 820 900 OPEN UPSET DIA. (mm) 51 52 62 MAX. OUTPUT (pcs/minute) 75 60 55 MAIN MOTOR (hp) 150 250 300 APPROX. WT. (ton) 118 166 188 -
SPECIFICATION 13B7S 24B7S 30B7S 36B7S CUT-OFF DIA. MAX. (mm) 16 26 30 34 CUT-OFF LENGTH MAX. (mm) 8~60 13~80 15~100 17~140 KICK-OUT LENGTH MAX. (mm) 70 (40) 110 (60) 125 (80) 150 (90) P.K.O. LENGTH MAX. (mm) 16 25 32 36 CUT-OFF QUILL (DxL) (mm) 50x60 85x90 94x100 110x155 MAIN DIE HOLE (DxL) (mm) 70x110 100x160 120x210 155x280 DIES PITCH (mm) 87 126 138 174 PUNCH HOLE (DxL) (mm) 50x9 75x157 90x250 110x222 RAM STROKE (mm) 140 200 250 280 FORGING POWER (ton) 140 330 460 680 OPEN UPSET DIA. (mm) JS22 IS26 29 32 51 MAX. OUTPUT (pcs/minute) 160 110 90 70 MAIN MOTOR (hp) 40 100 125 150 APPROX. WT. (ton) 28 61 96 134 -
SPECIFICATION 7B5S 10B5S 13B5S 13B5SL 19B5S 19B5SL CUT-OFF DIA. MAX. (mm) 7 10 16 16 18 18 CUT-OFF LENGTH MAX. (mm) 7~55 10~70 16~110 24~180 18~140 27~185 KICK-OUT LENGTH MAX. (mm) 50 (25) 60 (30) 85 (50) 170 (80) 110 (60) 160 (80) P.K.O. LENGTH MAX. (mm) 10 12 22 30 27 32 CUT-OFF QUILL (DxL) (mm) 24x30 28x55 50x80 50x80 60x100 70x100 MAIN DIE HOLE (DxL) (mm) 38x100 50x130 70x150 70x190 90x175 100x245 DIES PITCH (mm) 48 60 87 87 111 111 PUNCH HOLE (DxL) (mm) 32x90 40x112 50x132 50x132 65x150 75x191 RAM STROKE (mm) 100 120 190 250 230 280 FORGING POWER (ton) 26 55 110 120 185 185 OPEN UPSET DIA. (mm) 14 15 22 22 27 27 MAX. OUTPUT (pcs/minute) 240 220 170 160 140 130 MAIN MOTOR (hp) 10 15 30 40 50 75 APPROX. WT. (ton) 7.5 13 25 28 34 37 SPECIFICATION 24B5S 24B5SL 24B5SXL 30B5S 30B5SL CUT-OFF DIA. MAX. (mm) 23 23 23 30 30 CUT-OFF LENGTH MAX. (mm) 23~185 34.5~270 46~320 30~250 45~400 KICK-OUT LENGTH MAX. (mm) 160 (80) 230 (110) 285 (140) 220 (110) 325 (150) P.K.O. LENGTH MAX. (mm) 32 42 60 42 70 CUT-OFF QUILL (DxL) (mm) 75x100 75x100 75x120 95x120 95x120 MAIN DIE HOLE (DxL) (mm) 108x200 108x300 108x330 125x280 125x400 DIES PITCH (mm) 126 126 126 138 138 PUNCH HOLE (DxL) (mm) 75x181 75x231 75x232 90x260 90x290 RAM STROKE (mm) 280 360 460 360 520 FORGING POWER (ton) 270 280 300 380 400 OPEN UPSET DIA. (mm) 29 29 29 32 32 MAX. OUTPUT (pcs/minute) 110 100 80 90 70 MAIN MOTOR (hp) 100 100 100 125 125 APPROX. WT. (ton) 54 60 66 85 103 SPECIFICATION 36B5S 36B6S 41B5S 45B5S CUT-OFF DIA. MAX. (mm) 34 34 41 45 CUT-OFF LENGTH MAX. (mm) 34~280 34~280 41~320 45~420 KICK-OUT LENGTH MAX. (mm) 260 (120) 260 (120) 280 (130) 360 (160) P.K.O. LENGTH MAX. (mm) 45 45 50 80 CUT-OFF QUILL (DxL) (mm) 110x155 110x155 132x155 138x180 MAIN DIE HOLE (DxL) (mm) 155x310 155x310 180x350 195x450 DIES PITCH (mm) 174 174 195 210 PUNCH HOLE (DxL) (mm) 100x242 110x242 120x250 135x300 RAM STROKE (mm) 400 400 440 580 FORGING POWER (ton) 560 620 750 850 OPEN UPSET DIA. (mm) 51 51 52 62 MAX. OUTPUT (pcs/minute) 75 70 55 45 MAIN MOTOR (hp) 150 175 200 250 APPROX. WT. (ton) 115 126 163 200 -
SPECIFICATION 7B6S 10B6S 13B6S 13B6SL 19B6S 19B6SL CUT-OFF DIA. MAX. (mm) 7 10 16 16 18 18 CUT-OFF LENGTH MAX. (mm) 7~55 10~70 16~110 24~180 18~140 27~185 KICK-OUT LENGTH MAX. (mm) 50 (25) 60 (30) 85 (50) 170 (80) 110 (60) 160 (80) P.K.O. LENGTH MAX. (mm) 10 12 22 30 27 32 CUT-OFF QUILL (DxL) (mm) 24x30 28x55 50x80 50x80 60x100 70x100 MAIN DIE HOLE (DxL) (mm) 38x100 50x130 70x150 70x190 90x175 100x245 DIES PITCH (mm) 48 60 87 87 111 111 PUNCH HOLE (DxL) (mm) 32x90 40x112 50x132 50x132 65x150 75x191 RAM STROKE (mm) 100 120 190 250 230 280 FORGING POWER (ton) 30 65 135 150 220 230 OPEN UPSET DIA. (mm) 14 15 22 22 27 27 MAX. OUTPUT (pcs/minute) 240 200 165 150 135 125 MAIN MOTOR (hp) 10 20 40 40 75 100 APPROX. WT. (ton) 8.8 14.5 27.5 32 37 40 SPECIFICATION 24B6SS 24B6S 24B6SL 24B6SXL 30B6S 30B6SL CUT-OFF DIA. MAX. (mm) 23 23 23 23 30 30 CUT-OFF LENGTH MAX. (mm) 18~145 23~185 34.5~270 43~320 30~250 45~400 KICK-OUT LENGTH MAX. (mm) 130 (60) 160 (80) 230 (110) 285 (140) 220 (110) 325 (150) P.K.O. LENGTH MAX. (mm) 32 32 42 60 42 70 CUT-OFF QUILL (DxL) (mm) 65x80 75x100 75x100 75x120 95x120 95x120 MAIN DIE HOLE (DxL) (mm) 110x280 108x200 108x330 108x330 125x280 125x400 DIES PITCH (mm) 126 126 126 126 138 138 PUNCH HOLE (DxL) (mm) 75x210 75x181 75x231 75x232 90x260 90x290 RAM STROKE (mm) 230 280 360 460 360 520 FORGING POWER (ton) 250 300 320 340 420 420 OPEN UPSET DIA. (mm) 29 29 29 29 32 32 MAX. OUTPUT (pcs/minute) 120 105 90 70 85 70 MAIN MOTOR (hp) 100 100 125 125 125 150 APPROX. WT. (ton) 57 62 70 74 96 118 SPECIFICATION 36B6S 36B6SL 36B6SXL 41B6S 41B6SL 45B6S CUT-OFF DIA. MAX. (mm) 34 34 34 41 41 45 CUT-OFF LENGTH MAX. (mm) 34~280 51~400 72~450 41~320 61.5~440 45~420 KICK-OUT LENGTH MAX. (mm) 260 (120) 350 (160) 405 (180) 280 (130) 400 (180) 360 (160) P.K.O. LENGTH MAX. (mm) 45 70 100 50 100 80 CUT-OFF QUILL (DxL) (mm) 110x155 110x155 110x155 132x155 132x155 138x180 MAIN DIE HOLE (DxL) (mm) 155x310 155x400 155x500 180x350 180x490 195x450 DIES PITCH (mm) 174 174 174 195 195 210 PUNCH HOLE (DxL) (mm) 110x242 110x290 110x350 120x250 120x340 135x300 RAM STROKE (mm) 400 520 610 440 600 580 FORGING POWER (ton) 620 660 720 820 850 930 OPEN UPSET DIA. (mm) 51 51 51 52 52 62 MAX. OUTPUT (pcs/minute) 70 60 55 55 50 45 MAIN MOTOR (hp) 175 175 200 250 250 300 APPROX. WT. (ton) 126 137 143 177 196 220 -
SPECIFICATION 13B7S 19B7S 24B7S 30B7S CUT-OFF DIA. MAX. (mm) 16 18 23 30 CUT-OFF LENGTH MAX. (mm) 16~110 18~140 23~185 30~250 KICK-OUT LENGTH MAX. (mm) 100 (50) 110 (60) 160 (80) 220 (110) P.K.O. LENGTH MAX. (mm) 27 27 32 42 CUT-OFF QUILL (DxL) (mm) 50x80 60x100 75x100 95x120 MAIN DIE HOLE (DxL) (mm) 75x150 90x175 108x200 125x280 DIES PITCH (mm) 87 111 126 138 PUNCH HOLE (DxL) (mm) 50x132 65x150 75x181 90x260 RAM STROKE (mm) 230 230 280 360 FORGING POWER (ton) 145 265 330 460 OPEN UPSET DIA. (mm) 22 27 29 32 MAX. OUTPUT (pcs/minute) 150 130 100 70 MAIN MOTOR (hp) 40 100 125 150 APPROX. WT. (ton) 30 40 70 108 -
