| Model | # of Strokes | Point Cabilities | Blank Diameters | Length | Speeds | Main Motor | Dimensions (lxwxh cm) | Weight kgs |
|---|---|---|---|---|---|---|---|---|
| PM-W | Single & Double Stroke | #1 to #8 | 2.8 to 10mm | 12 to 600mm | 50 to 300ppm (Single) | 15hp | 245 x 315 x 220 | 5850 |
| 2.8 to 7mm (SS) | 25 to 150ppm (Double) | |||||||
| PM-210S | Single & Double Stroke | #1 to #6 | 2.4 to 8mm | 9.5 to 220mm | 50 to 300ppm (Single) | 10hp | 180 x 240 x 205 | 3250 |
| 2.4 to 5.1mm (SS) | 25 to 150ppm (Double) | |||||||
| PM-100S | Single & Double Stroke | #1 to #3 | 2.4 to 4.4 | 9.5 to 100mm | 80 to 600ppm (Single) | 7.5hp | 175 x 205 x 185 | 2550 |
| 2.4 to 3.8 (SS) | 40 to 300ppm (Double) | |||||||
| PM-200 | Single Stroke | #1 to #6 | 2.4 to 5.4mm | 9.5 to 200mm | 100 to 600ppm | 7.5 or 10hp | 180 x 235 x 200 | 2700 |
| PM-100 | Single Stroke | #1 to #3 | 2.8 to 4.8mm | 9 to 100mm | 100 to 600ppm | 5hp | 175 x 205 x 185 | 2400 |
Pointing Equipment
PM Series Pinch-Pointer
Pinch point screws to create self-drilling fasteners with our line of PM Series machines.
#1 to #8 point capabilities
2.4 to 10mm blank diameters
9 to 400mm blank lengths
Up to 600 pieces per minute
Single and double stroke systems
Double stroke available for stainless and long points
High-precision feed adjustment
Air clutch and air brake
PLC
Vibratory bowl feed
Inverter speed regulation
Abnormal operation detection system protects dies
Independent die lube and machine lube systems
PM-100

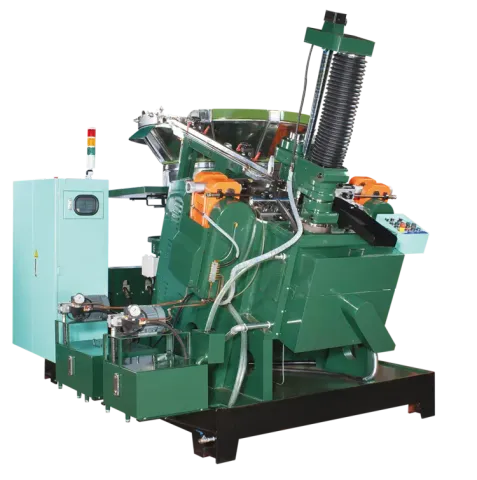

PM-W
