| TYPE | SCREW DIA. | SCREW LENGTH (MAX.) | OUTLET HEIGHT | ANGLE | VOLTAGE | HERTZ | N.W. (FEEDER) | CRATE SIZE |
|---|---|---|---|---|---|---|---|---|
| LYFW-200 | 1-3mm | 15mm | 235mm | PER REQUEST | PER REQUEST | 50/60 | 25KG | 300*300*220mm |
| LYFW-250 | 1-4mm | 30mm | 240mm | 34KG | 330*330*220mm | |||
| LY-300 | 2-5mm | 30mm | 285mm | 37KG | 400*400*350mm | |||
| LY-400 | 2-6mm | 40mm | 350mm | 62KG | 500*500*420mm | |||
| LY-520 | 2-8mm | 75mm | 425mm | 117KG | 600*600*550mm | |||
| LY-620 | 3-12mm | 100mm | 450mm | 150KG | 720*720*600mm | |||
| LY-720 | 5-16mm | 125mm | 485mm | 250KG | 800*800*650mm | |||
| LY-850 | 5-20mm | 150mm | 495mm | 295KG | 950*950*700mm | |||
| LY-1000 | 5-25mm | 200mm | 530mm | 425KG | 1100*1100*700mm | |||
| LY-1200 | 5-28mm | 300mm | 625mm | 695KG | 1350*1350*750mm | |||
| LY-1500 | 5-30mm | 400mm | 630mm | 980KG | 1650*1650*800mm |
Feeder Bowls
JT Series
A wide range of vibratory bowl feeders designed to efficiently orient and feed components for automated production lines. Our feeders can handle a wide variety of products, including screws, washers, hand tool sockets, nuts, driver bits, electronic screws, cosmetics, and more. Engineered for precision and reliability, our vibratory feeders ensure smooth and consistent part flow, enhancing manufacturing efficiency across multiple industries. With customizable solutions available, we can tailor our feeders to meet specific application needs, ensuring seamless integration into your production process.
General Screw Orientation
Washer Orientation

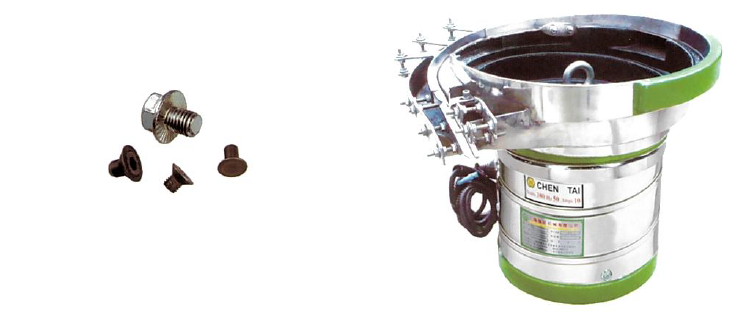

Special Screw Orientation
Nylon Washers
Nut Orientation
Hand Tool Socket Orientation
Electronics Screws Orientation
Driver Bit Orientation
Cosmetics
-
-
TYPE FLAT WASHER (O.D.) FLAT WASHER (THK.) SPRING WASHER (O.D.) SPRING WASHER ( THK.) N.W. ( FEEDER) VOLTAGE HERTZ CRATE SIZE LGFW-250 8mm 1.0-2mm 6mm 1.4mm 25KG PER REQUEST 50/60 400*400*370mm LG-300 10mm 1.0-3mm 8mm 1.7mm 40KG 450*450*420mm LG-400 12mm 1.0-4mm 10mm 2.1mm 64KG 550*550*520mm LG-600 22mm 2.0-6mm 18mm 2.6mm 140KG 720*720*600mm LG-700 25mm 2.0-6mm 20mm 5.1mm 240KG 800*800*650mm -
TYPE Screw Head Dia. (MAX.) Screw Major Dia. Screw Length ( MAX.) N.W. (Feeder) Voltage Hertz Crate Size LSFW-200 4.0mm 1-3mm 6mm 20KG Per Request 50/60 300*300*200mm LSFW-250 5.0mm 1-4mm 6mm 25KG 330*330*220mm LS-300 6.0mm 2-5mm 8mm 30KG 430*430*350mm LS-400 10mm 2-6mm 12mm 52KG 450*450*400mm LS-520 16mm 2-8mm 18mm 109KG 600*600*450mm LS-620 25mm 3-12mm 27mm 130KG 700*700*500mm LS-720 30mm 5-16mm 32mm 228KG 850*850*600mm -
Due to the nature of having specific requirements these do not have standardized model numbers. These bowls are built to order.
Drive Size Socket OD Socket Length 1/4" 12 - 30mm 18 - 35mm 3/8" 17 - 30mm 20 - 45mm 1/2" 22 - 32mm 28 - 55mm 30 - 42mm
